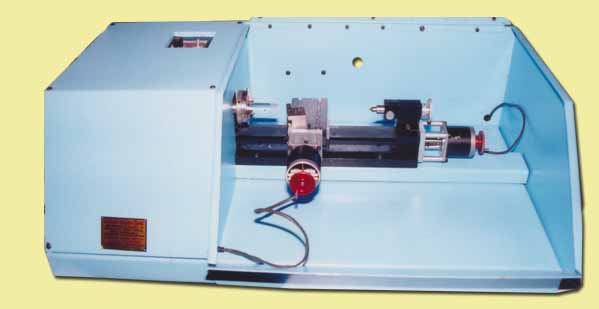

Sherline Lathe |
|
| |
|
|
| |
| TECHNICAL SPECIFICATION |
| FEATURE |
4000(4100)
|
4400(4410) |
| |
|
|
Swing over bed |
3.50" (90 mm) |
3.50" (90 mm) |
Swing over crosslide |
1.88" (48 mm) |
1.88" (48 mm) |
Distance between centers |
8.00" (200 mm) |
17.00" (430 mm) |
Hole through spindle |
.405" (10 mm) |
.405" (10 mm) |
Spindle nose thread |
3/4"-16 T.P.I. |
3/4"-16 T.P.I . |
Spindle nose taper |
#1 Morse |
#1 Morse |
Travel of crosslide |
4.25" (110 mm) |
4.25" (110 mm) |
| Tailstock spindle travel |
1.25" (32 mm) |
1.25" (32 mm) |
Taper of tailstock spindle |
#0 Morse |
#0 Morse. |
Headstock protractor graduations |
0° to 45° by 5° |
0° to 45° by 5° |
Handwheel graduations |
.001" (.01mm) |
.001" (.01 mm) |
| Motor |
1/3 HP DC, 90 Volts |
| Speed control |
Electronic: accepts any incoming voltage from 100VAC to 240 VAC, 50 or 60 Hz and automatically converts it to 90 VDC for motor |
Spindle speed range |
70 to 2800 RPM, continuously variable by electronic speed control (Optional pulley set allows speeds to 10,000 RPM) |
Length overall |
24" (610 mm) |
32.25" (820 mm) |
Width overall |
7.5" (190 mm) |
8.75" (220 mm) |
Height overall |
6" (150 mm) |
8" (200 mm) |
Shipping weight |
24 lb. (10.9 kg) |
30 lb. (13.6 kg) |
|
|
| |
|
|
|
|
|
|
