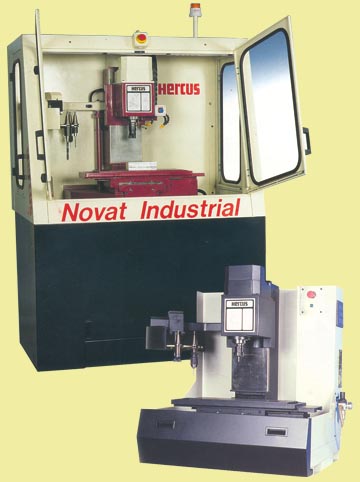

Hercus NOVAT CNC VERTICAL MACHINING CENTRE |
|
| |
|
|
| |
|
|
| |
| TECHNICAL SPECIFICATION |
| |
|
|
| |
METRIC |
IMPERIAL |
| Table area |
510 mm x 165m |
20" x 6.5" |
| X axis longitudinal travel |
300 mm |
12" |
| Y axis cross travel |
170 mm |
6.75" |
| Z axis head travel |
220 mm |
8.75" |
| Spindle to table max |
295 mm |
11.75" |
| min |
75 mm |
3" |
| Spindle to column |
150 mm |
6" |
| Rapid traverse |
6 mtr/min |
235"/min |
| Table tee slots number off |
3 |
|
| size |
11.12 mm |
0.437" |
| spacing |
47.6 mm |
1.875" |
| Spindle taper |
no. 30 ISO |
|
| Spindle speeds |
infinitely variable O - 3500 rpm |
|
| Spindle motor |
.375 kw |
.5 hp |
| Axis motors |
80watt |
.1hp |
| Axis ball screw-diameter1 |
12mm |
0 475 |
| Electrical input |
110v/60hz or240v/50hz |
|
| Resolution |
0.01 mm |
0.0004" |
| Machine length |
917 mm |
36" |
| Dimension width |
864mm |
34" |
| height |
917 mm |
36" |
| Weight industrial model |
450 kg |
990 lb |
| standard model |
250 kg |
550 lb |
|
|
| |
|
|
| |
NOVAT OPTIONS |
|
| |
|
|
| |
Automatic tool changer, Coolant systemm, Air blast, Machine light,High speed spindle, Floor cabinet deluxe,Floor cabinet, Robot & interface |
|
|
|
|
|
