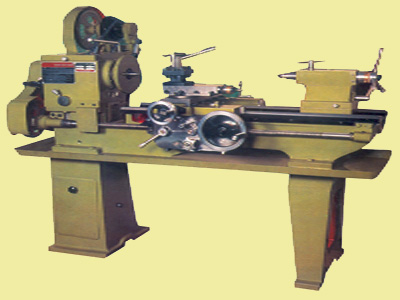

  Light Duty Lathe Machine ( GUJARAT )



STRUCTURE

Bed Length 1370 mm 1600 mm 1825 mm
Bed Type 2 V & 2 Flat 2 V & 2 Flat 2 V & 2 Flat
Bed width 238 mm 238 mm 238 mm
Gap Length in front of face plate 135mm 135mm 135mm

CAPACITIES

Height of Centre 165 mm 165 mm 165 mm
Max. Swing over Bed 320 mm 320 mm 320 mm
Max. Swing in Gap 530 mm 530 mm 530 mm
Max. Swing Over cross-slide 175 mm 175 mm 175 mm
Admit between Centre 680 mm 890 mm 890 mm

HEAD STOCK

Spindle Nose dia 62 mm 62 mm 62 mm
Taper Bore in Sp. Sleeve MT 3 MT 3 MT 3
Spindle Threads 8 TPI 8 TPI 8 TPI
Spindle Bore Dia 40 mm 40 mm 40 mm
Taper Bore in Sp. Nose MT 5 MT 5 MT 5

TAIL STOCK

Quill Dia. 38 mm 38 mm 38 mm
Taper in Quill MT 3 MT 3 MT 3
Quill movement 115 mm 115 mm 115 mm

SLIDE & TOOL POST

Cross Slide Travel 205 mm 205 mm 205 mm
Compound Slide Travel 105 mm 105 mm 105 mm
Tool Shank Section 20 x 20 20 x 20 20 x 20

SPEEDS & FEEDS

No. of Spindle Speed 8 Nos. 8 Nos. 8 Nos.
Low/High (RPM) 49/950 49/950 49/950
No. of Feeds 19 19 19
Longitudinal (mm/Rev.) 0.05 to 1.25 0.05 to 1.25 0.05 to 1.25
Cross (mm/Rev.) 0.0007 to 0.22 0.0007 to 0.22 0.0007 to 0.22

GEAR TRAIN

 No. of Threads/Range:
Metric pitch 13 / 1 to 6 13 / 1 to 6 13 / 1 to 6
Inch pitch (TPI) 19 / 2 to 24 19 / 2 to 24 19 / 2 to 24
Lead Screw dia./Thds. 25.4 / 4 TPI 25.4 / 4 TPI 25.4 / 4 TPI

ELECTRICALS

Motor power 1.5 H. P./1.125 Kw 1.5 H. P./1.125 Kw 1.5 H. P./1.125 Kw
Power Supply 415 Valts 415 Valts 415 Valts
  3 Phase 3 Phase 3 Phase
  50 Hz A.C. 50 Hz A.C. 50 Hz A.C.
  1440 RPM 1440 RPM 1440 RPM
  B - 52 B - 52 B - 52

BELT DRIVE

 ‘V’ Belt B – 42 B - 42 B - 42

GENERAL

Weight (Approx) 456 Kg. 486 Kg.

550 Kg.
Floor Space (Apprx.)
L 1700 mm 2000 mm 2450 mm
B 950 mm 950 mm 950 mm
H 1465 mm 1465 mm 1465 mm
