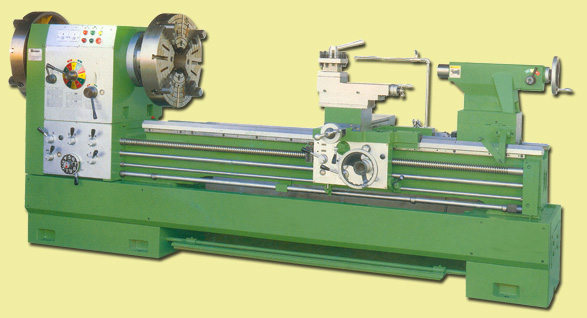

Spindle Bore 156mm Series |
|
| |
|
|
| |
| TECHNICAL SPECIFICATION |
| MODEL |
26GL SERIES |
30GL SERIES |
33GL SERIES |
| Center high |
335mm |
385mm |
420mm |
| Swing over bed |
670mm |
770mm |
840mm |
| Swing over cross slide |
460mm |
560mm |
560mm |
| Swing over gap |
890mm |
990mm |
1060mm |
| Width of gap |
460mm(18") |
| Width of bed |
400mm(16") |
| Length of bed |
2760(60"),3170(80"),3670(100"),4170(120")
4670(140"),5170(160"),6170(200") |
| Distance between centers |
1500(60"),2000(80"),2500(100"),3000(120")
3500(140"),4000(160"),5000(200") |
| Spindle hole |
156mm(6 1/16") |
| Spindle nose |
A 1- 11, D 1 - 11 |
| Number of Spindle speeds |
13 - 800RPM 12 |
| Spindle taper |
80mm(31/8") |
| Tailstock spindle |
MT# 5 |
| Quill travel |
230mm(9") |
| Cross feeds |
0.25 - 0.35(36 Kinds) |
| Longitudinal feeds |
0.05-0.7(36 Kinds) |
| Lead screw diameter |
45mm(1 3/4")x2TPI |
| Threading range, metric |
0.08 -14mm/Pitchy(65 Kinds) |
| Threading range.inch |
2-28 TPI(36 Kinds) |
| Module pith threads |
0.5-7(22 Kinds) |
| DP.Pitch threads |
4-56P(36 Kinds) |
| Main spindle motor |
15HP |
|
|
| |
|
|
|
|
|
|
