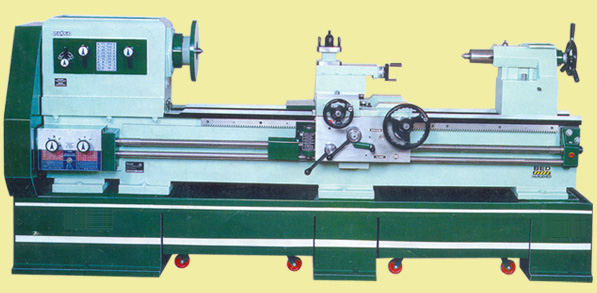

MODEL : 60 |
|
| |
|
|
| |
|
|
| |
| TECHNICAL SPECIFICATION |
|
| Height of Centers |
300 |
| Swing of Centers |
600 |
| Swing over slide |
390 |
| Width of Bed |
375 |
| Spindle Bore |
80 |
| Spindle nose |
LO-Type |
| Spindle Speed No. |
16 H-L |
| RPM |
30-1550 |
| Cross slide Travel |
325 |
| Top slide Travel |
150 |
| Tail Stock Sleeve |
MT-4 |
| Quill Dia./Travel |
75/150 |
| Tool sahnk section |
25 X 25 |
| Feeds Longitudinal |
No.40/0.02-1 |
| Feeds Traverse |
No.40/.005-0.25 |
| Metric Thread |
40/0.4-7 |
| Thread Per Inch |
45/70-4 TPI |
| Lead Screw |
4 TPI |
| Main Motor |
3.7 kw |
| Admit Between Cente |
1500/2500 |
| Bed Length Feet |
9' / 12' |
| Wight Approximan |
1900/2300 |
|
|
| |
|
|
|
|
|
|
