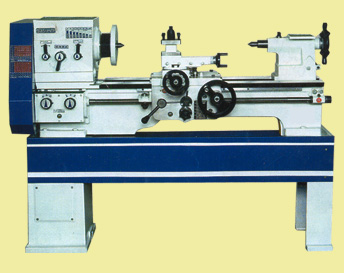

MODEL : 34 |
|
| |
|
|
| |
|
|
| |
| TECHNICAL SPECIFICATION |
|
| Height of Centers |
170 |
| Swing of Centers |
340 |
| Swing over slide |
180 |
| Width of Bed |
240 |
| Spindle Bore |
40 |
| Spindle nose |
LOO-Type |
| Spindle Speed No. |
8 |
| RPM |
60-1025 |
| Cross slide Travel |
175 |
| Top slide Travel |
125 |
| Tail Stock Sleeve |
MT-3 |
| Quill Dia./Travel |
50/125 |
| Tool sahnk section |
20 X 20 mm |
| Feeds Longitudinal |
No.40/0.02-1 |
| Feeds Traverse |
No.40/.005-0.25 |
| Metric Thread |
40/0.4-7mm |
| Thread Per Inch |
45/70-4 TPI |
| Lead Screw |
4 TPI |
| Main Motor |
1.5 kw |
| Admit Between Cente |
600 |
| Bed Length Feet |
4.5' |
| Wight Approximan |
550 |
|
|
| |
|
|
|
|
|
|
